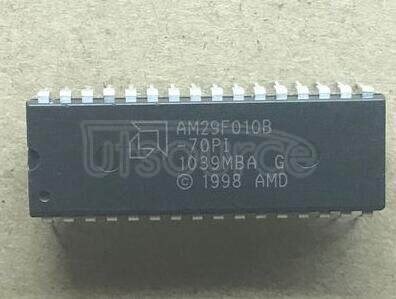

AM29C010B микросхема дип корпус

ORDERING INFORMATION Standard Products AMD standard products are available in several packages and operating ranges. The order number (Valid Combination) is formed by a combination of the elements below. Am29F010B 70 E C C TEMPERATURE RANGE = Commercial (0°C to +70°C) I = Industrial (–40°C to +85°C) E = Extended (–55°C to +125°C) PACKAGE TYPE P J E F = 32-Pin Plastic PDIP (PD 032) = 32-Pin Rectangular Plastic Leaded Chip Carrier (PL 032) = 32-Pin Thin Small Outline Package (TSOP) Standard Pinout (TS 032) = 32-Pin Thin Small Outline Package (TSOP) Reverse Pinout (TSR032) SPEED OPTION See Product Selector Guide and Valid Combinations DEVICE NUMBER/DESCRIPTION Am29F010B 1 Megabit (128 K x 8-Bit) CMOS Flash Memory 5.0 Volt-only Read, Program, and Erase Valid Combinations VCC Voltage Am29F010B-45 Am29F010B-55 5.0 V ± 5% PC, PI, PE, JC, JI, JE, EC, EI, EE, FC, FI, FE Valid Combinations Valid Combinations list configurations planned to be supported in volume for this device. Consult the local AMD sales office to confirm availability of specific valid combinations and to check on newly released combinations. Am29F010B-70 Am29F010B-90 Am29F010B-120

Table 2. Am29F010B Sector Addresses Table Sector SA0 SA1 A16 0 0 A15 0 0 A14 0 1 Address Range 00000h-03FFFh 04000h-07FFFh SA2 SA3 SA4 SA5 SA6 SA7 0 0 1 1 1 1 Note: All sectors are 16 Kbytes in size. 1 1 0 0 1 1 0 1 0 1 0 1 08000h-0BFFFh 0C000h-0FFFFh 10000h-13FFFh 14000h-17FFFh 18000h-1BFFFh 1C000h-1FFFFh
